Observability 3.0: Causal Tracing in AI Pipelines Explained

A practical guide to Observability 3.0 and causal tracing in AI pipelines. Learn how causal tracing goes beyond logs and metrics to help you debug, monitor, and improve AI systems with real code examples.

You deployed your AI pipeline. It mostly works. But then it gives a wrong answer, or it's slow, or something upstream quietly broke, and you have no idea where things went sideways.

Traditional monitoring tools tell you that something failed. They show you error counts, latency spikes, and CPU graphs. But in a multi-step AI pipeline, that is not enough. You need to know why it failed and which decision caused it. That is a completely different problem.

That is the gap Observability 3.0 is designed to close. It moves past logs and metrics into something more powerful: causal tracing. Instead of just recording what happened, it tracks the cause-and-effect chain across every step of your AI system, from the user input all the way to the final output.

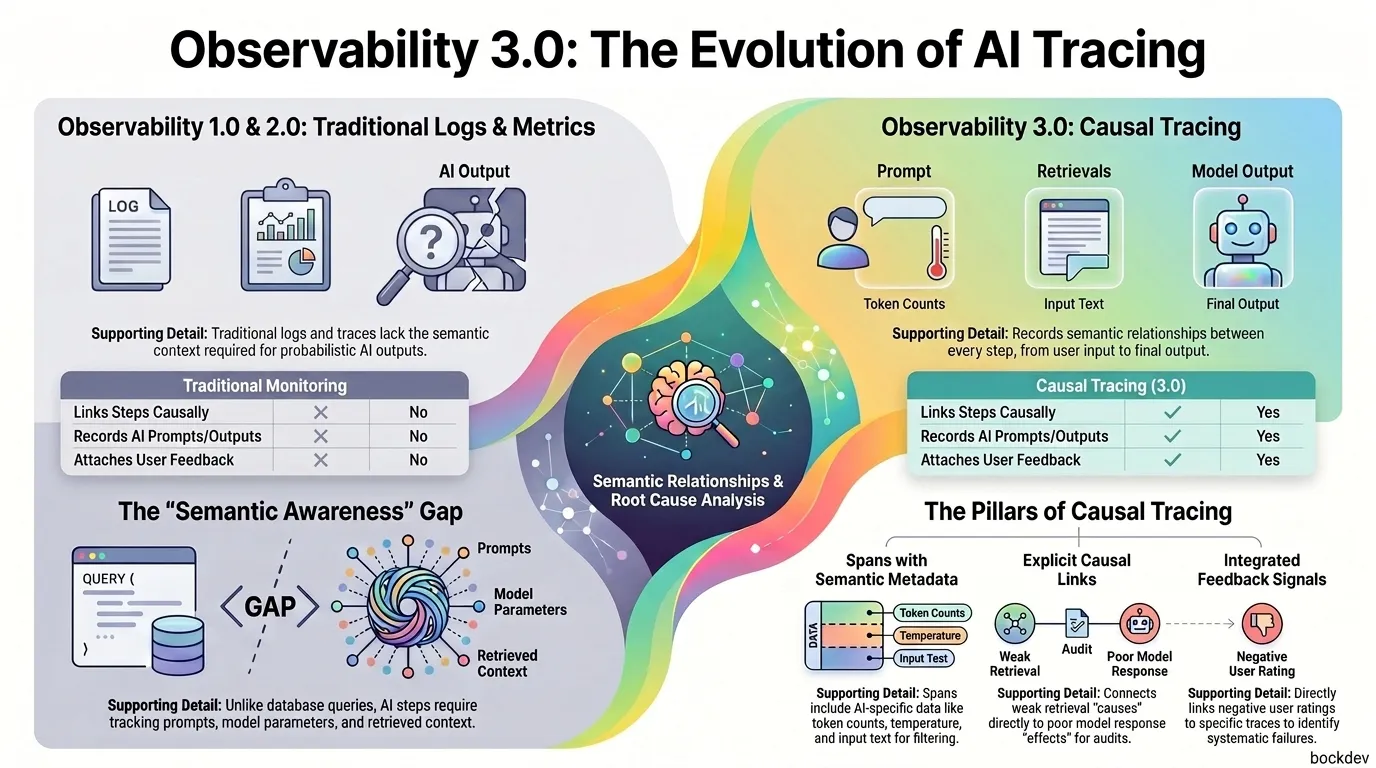

What Changed: Observability 1.0 vs 2.0 vs 3.0

Before diving into causal tracing, it helps to understand how observability has evolved.

Generation	Focus	Tools	What It Misses
Observability 1.0	Logs and metrics	ELK stack, Prometheus	No context between events
Observability 2.0	Distributed tracing	Jaeger, Zipkin, OpenTelemetry	No semantic AI context
Observability 3.0	Causal tracing	LangSmith, Arize, Weights & Biases	(current frontier)

In a traditional microservices app, Observability 2.0 was enough. You traced HTTP requests across services and saw where things slowed down. But AI pipelines are different. An LLM call is not a simple database query. It has inputs, prompts, model parameters, retrieved context, and probabilistic outputs. None of that fits neatly into a basic trace span.

Observability 3.0 adds semantic awareness. It understands what your pipeline means, not just what it does.

What Is Causal Tracing?

Causal tracing is the practice of recording not just the sequence of events in your AI pipeline, but the causal relationships between them.

In plain terms: if your RAG pipeline returned a bad answer, causal tracing lets you trace back and ask: was it a bad retrieval? A bad prompt? A bad chunk? A bad model response? Each step is linked to the next, so you can walk the chain.

Think of it as a full audit trail with causal arrows, not just timestamps.

A typical AI pipeline might look like this:

User Query
    |
    v
Query Rewriter (LLM)
    |
    v
Vector Search (Retrieval)
    |
    v
Context Assembler
    |
    v
Answer Generator (LLM)
    |
    v
Output Validator
    |
    v
Final Response

In Observability 3.0, every arrow is tracked. You know what went into each step and what came out, and you can trace a bad output back to its root cause.

The Key Concepts Behind Causal Tracing

Spans with Semantic Metadata

A span is the basic unit of a trace. In Observability 3.0, spans carry AI-specific metadata beyond just start/end time.

python

from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider

tracer = trace.get_tracer("ai-pipeline")

with tracer.start_as_current_span("llm_call") as span:
    span.set_attribute("llm.model", "gpt-4o")
    span.set_attribute("llm.prompt_tokens", 512)
    span.set_attribute("llm.completion_tokens", 128)
    span.set_attribute("llm.temperature", 0.7)
    span.set_attribute("llm.input", user_query)
    span.set_attribute("llm.output", model_response)

    response = call_llm(user_query)

This lets you filter traces by model, token count, temperature, or input text. That is not possible with basic HTTP tracing.

Causal Links Between Steps

The key addition in causal tracing is explicit links between a cause and its effect. If the retrieval step pulls weak chunks, that causes the LLM to generate a weak answer. You want that link recorded.

python

with tracer.start_as_current_span("rag_pipeline") as parent_span:
    # Step 1: Retrieve
    with tracer.start_as_current_span("retrieval") as retrieval_span:
        chunks = vector_search(query)
        retrieval_span.set_attribute("retrieval.num_chunks", len(chunks))
        retrieval_span.set_attribute("retrieval.top_score", chunks[0]["score"])

    # Step 2: Generate (causally downstream of retrieval)
    with tracer.start_as_current_span("generation") as gen_span:
        answer = llm_generate(query, chunks)
        gen_span.set_attribute("generation.caused_by", "retrieval")
        gen_span.set_attribute("generation.input_chunks", len(chunks))

The nested structure and explicit attributes create the causal record.

Feedback Signals as First-Class Data

In Observability 3.0, user feedback is not a separate analytics system. It is attached directly to the trace.

python

# After user gives thumbs down
trace_id = "abc123"
feedback = {
    "trace_id": trace_id,
    "score": 0,
    "reason": "answer was factually wrong",
    "step_blamed": "retrieval"
}
log_feedback(feedback)

Now you can query: "Show me all traces where retrieval score was below 0.7 AND user feedback was negative." That is how you find and fix systematic problems.

Setting Up Causal Tracing with OpenTelemetry

OpenTelemetry is the open standard for tracing. Here is a minimal working setup for an AI pipeline.

Project Structure

my-ai-pipeline/
├── main.py
├── pipeline/
│   ├── retriever.py
│   ├── generator.py
│   └── validator.py
├── observability/
│   ├── tracer.py
│   └── exporter.py
└── requirements.txt

Install Dependencies

bash

pip install opentelemetry-api \
            opentelemetry-sdk \
            opentelemetry-exporter-otlp \
            opentelemetry-instrumentation-requests

Configure the Tracer

python

# observability/tracer.py
from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import BatchSpanProcessor
from opentelemetry.exporter.otlp.proto.grpc.trace_exporter import OTLPSpanExporter

def setup_tracer(service_name: str):
    provider = TracerProvider()
    exporter = OTLPSpanExporter(endpoint="http://localhost:4317")
    provider.add_span_processor(BatchSpanProcessor(exporter))
    trace.set_tracer_provider(provider)
    return trace.get_tracer(service_name)

Instrument a RAG Pipeline

python

# main.py
from observability.tracer import setup_tracer

tracer = setup_tracer("rag-service")

def run_rag_pipeline(user_query: str):
    with tracer.start_as_current_span("rag_pipeline") as root:
        root.set_attribute("input.query", user_query)

        # Retrieval step
        with tracer.start_as_current_span("retrieval") as r_span:
            chunks = retrieve_chunks(user_query)
            r_span.set_attribute("retrieval.count", len(chunks))
            r_span.set_attribute("retrieval.top_score", chunks[0].score)

        # Generation step
        with tracer.start_as_current_span("generation") as g_span:
            answer = generate_answer(user_query, chunks)
            g_span.set_attribute("generation.output_length", len(answer))

        root.set_attribute("output.answer", answer)
        return answer

Causal Tracing vs Traditional Monitoring: A Quick Comparison

Feature	Traditional Monitoring	Causal Tracing
Tracks latency	Yes	Yes
Tracks error rates	Yes	Yes
Records LLM inputs/outputs	No	Yes
Links steps causally	No	Yes
Attaches user feedback	No	Yes
Supports prompt debugging	No	Yes
Identifies root cause in multi-step AI	No	Yes

Popular Tools for Observability 3.0

You do not have to build all of this yourself. These tools are purpose-built for AI pipeline observability.

LangSmith (by LangChain): Deep tracing for LLM chains. Captures prompts, outputs, latency, and token counts automatically.

Arize AI: Focused on ML monitoring and model performance. Strong feedback loop integration.

Weights and Biases (W&B): Great for experiment tracking and tracing during fine-tuning and evaluation pipelines.

OpenTelemetry + Grafana Tempo: The open-source path. More setup work but fully customizable and vendor-neutral.

python

# Example: LangSmith auto-tracing
import os
os.environ["LANGCHAIN_TRACING_V2"] = "true"
os.environ["LANGCHAIN_API_KEY"] = "your-api-key"

from langchain.chains import RetrievalQA

# All calls are now automatically traced to LangSmith
chain = RetrievalQA.from_chain_type(llm=llm, retriever=retriever)
result = chain.run("What is causal tracing?")

A Real Debugging Example

Say your AI assistant is giving outdated answers. Without causal tracing, you check logs, shrug, and guess it is a model issue.

With causal tracing, you filter traces by low user feedback scores. You see that the retrieval score for those queries was always below 0.6. You click into one trace and see the retrieved chunks are from documents indexed 8 months ago. The retrieval step has a freshness problem.

You fix your indexing schedule. Problem solved, and you have a record of exactly what caused it.

python

# Query your trace store for bad retrievals
bad_traces = trace_store.query(
    filters={
        "user_feedback.score": {"lt": 0.5},
        "retrieval.top_score": {"lt": 0.6}
    },
    limit=50
)

for trace in bad_traces:
    print(trace["retrieval.top_score"], trace["input.query"])

Q&A

1. What is Observability 3.0 in simple terms?

It is the next generation of monitoring built specifically for AI systems. It goes beyond logs and metrics to track the cause-and-effect chain across every step of an AI pipeline.

2. How is causal tracing different from distributed tracing?

Distributed tracing records what happened and when. Causal tracing also records why things happened, including AI-specific context like prompts, retrieval scores, and model outputs.

3. Do I need a special tool or can I use OpenTelemetry?

You can use OpenTelemetry as the base and extend it with AI-specific attributes. Tools like LangSmith or Arize add a higher-level layer on top with less manual setup.

4. Is causal tracing only for RAG pipelines?

No. It applies to any multi-step AI system: agents, fine-tuned model inference, evaluation pipelines, classifier chains, and so on.

5. How do I attach user feedback to a trace?

Most platforms let you log feedback using a trace ID. You call the feedback API after the user rates a response and link it back to the original trace by ID.

6. Does causal tracing impact performance?

Minimal impact when using async/batched span exporters. The OpenTelemetry SDK is designed for low overhead in production.

7. Can causal tracing help with prompt debugging?

Yes. Because each span records the exact prompt sent and the response received, you can replay and compare prompts across traces to see which versions perform better.

8. What is a span in this context?

A span is one unit of work in a trace, for example, a single LLM call or a retrieval query. Nested spans form the causal chain of your pipeline.

9. How is this different from just logging everything?

Logs are unstructured and disconnected. Spans are structured, linked, and queryable. You can ask "show me all pipelines where retrieval failed AND user was unhappy," which is impossible with plain logs.

10. What is the best starting point for a team new to this?

Start with LangSmith if you are using LangChain. If you are building custom pipelines, add OpenTelemetry instrumentation with a few key attributes (model name, token counts, retrieval scores) before adding more complexity.

My SaaS

Acluebox

Build modular and reusable system prompts with my SaaS, Acluebox. Also, free prompt template generators there.

References

OpenTelemetry Documentation - https://opentelemetry.io/docs/
LangSmith Tracing Guide (LangChain) - https://docs.smith.langchain.com/
Arize AI Platform Documentation - https://docs.arize.com/arize/
Use Weave with W&B Models - https://docs.wandb.ai/weave/cookbooks/Models_and_Weave_Integration_Demo
